TYPES	Damping torque in-lbs	Damping direction
FYN-S1-L104	44.25 - 88.51	left

Rotary Dampers
FYN-S1-L104

The flat damper for constant component protection

Partial Rotation Angle
Damping torque 44.25 - 88.51 in-lbs

The self-compensating FYN-S1 rotary damper with zinc die-cast body provides a constant sequence of movement for different masses. The damping direction can be either right or left rotation. During each reverse movement of the unilateral decelerating versions there is a certain return damping torque that depends on the size. ACE rotary dampers are maintenance-free and ready-to-install.

Rotary damper products are built to metric specifications. For precise measurements, please refer to the ACE rotary damper catalog or contact an application expert.

ACE will be closed between December 24th and January 2nd. Orders placed during this period will be processed on January 2.

$--.--

This product is not available for
online order.

If you are interested in ordering this
product, click the inquiry form below
and we will contact you.

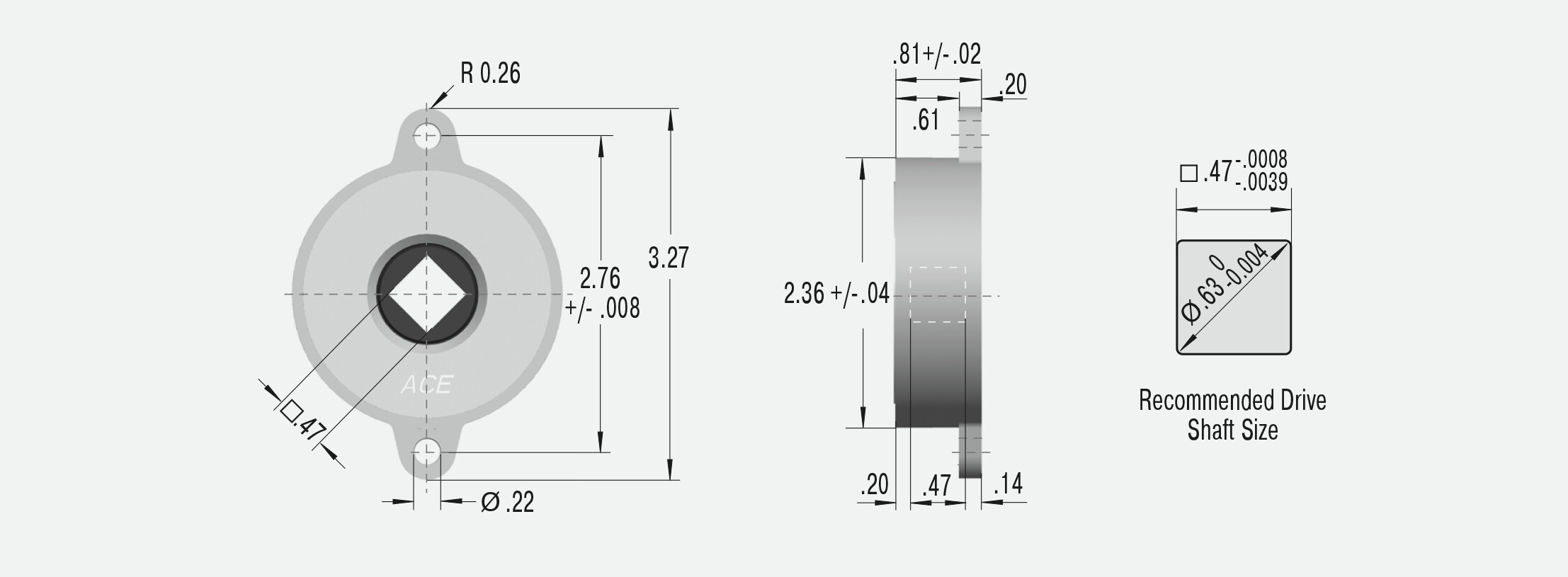

CAD Drawings

Product-Downloads

Technical Details

FYN-S1-L104

Partial Rotation Angle

Technical Data

Damping torque 44.25 - 88.51 in-lbs

Damping direction left

Return Damping Torque 13.28 in-lbs

Construction size Ø 2.36 in

Lifetime 50,000 cycles, even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application.

Operating temperature range 23 °F to 122 °F

Material Outer body: Zinc die-cast; Output shaft sleeve: Plastic

Mounting In any position

Rotation angle max. 130°

Note

Damping direction: Right hand damping = damping action in clockwise direction (when looking onto the output shaft or output shaft sleeve, depending on the damper type). A play of approx. 5° can occur at the beginning of movement.

Mounting information

No axial or radial forces may be induced via the shaft.

Safety information

Do not use rotary dampers as supports. Provide an external guide or support.

On request

Special accessories available on request.
